EB/M-150VA

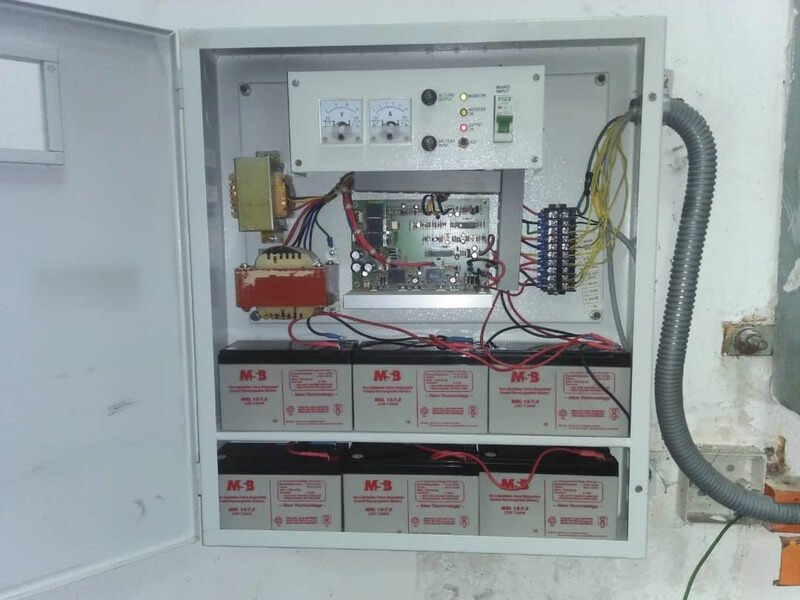

Emergency Battery Operated Power Supply (EBOPS) For Lift
Dssigned and Manuractured To Meet The Requirements of Industrial Applications
Features
Dssigned and Manuractured To Meet The Requirements of Industrial Applications
| Type | EB/M-150VA | |
| Input | Voltage | 240VAC ± 10% |
| Frequency | 50Hz ± 5% | |
| Phase | Single phase | |
| Output | Voltage | 240VAC / Output : 110 VAC |
| Multiple Voltage | DC : 6V, 12V & 24V | |
| Capacity | 150VA (120W) | |
| 150VA (120W) | ± 1 % | |
| Battery | Type | Sealed Lead Acid |
| Model | MSL12-7.2 | |
| Voltage Capacity | 7.2 AH | |
| Number Of Blocks | 3bank x 2 blocks |
Features
- DC output regulation within ± 1% for nominal AC mains ± 10%, frequency ± 5%, load current 0 to 100%
- Switching MOSFET Technology — Constant Voltage Current Limited
- Reverse battery protection
- Maintenance free Sealed Lead Acid Battery
- Protection - Mains Input MCB; AC Output Fuse ; DC Battery Input fuse
- Indicator - Mains ON ; Inverter ON & Mains Fail – LED
- Meter—Moving coil AC voltmeter : Class 2.5

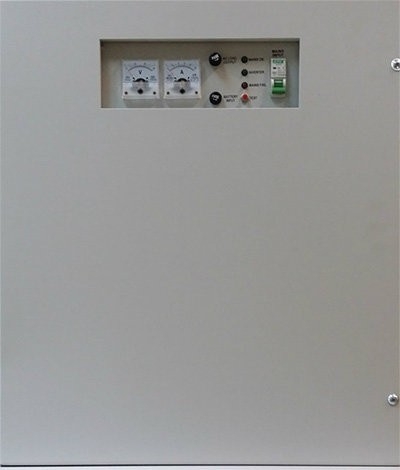

- Easy handling, compact size and lightweight (Floor Standing or Wall Mounted)
- Dimension : L480 x D100 x H550 mm
- Lift
- DC Control Equipment
- Instrumentation
- Emergency Light Standby
- Signaling & Alarm System
